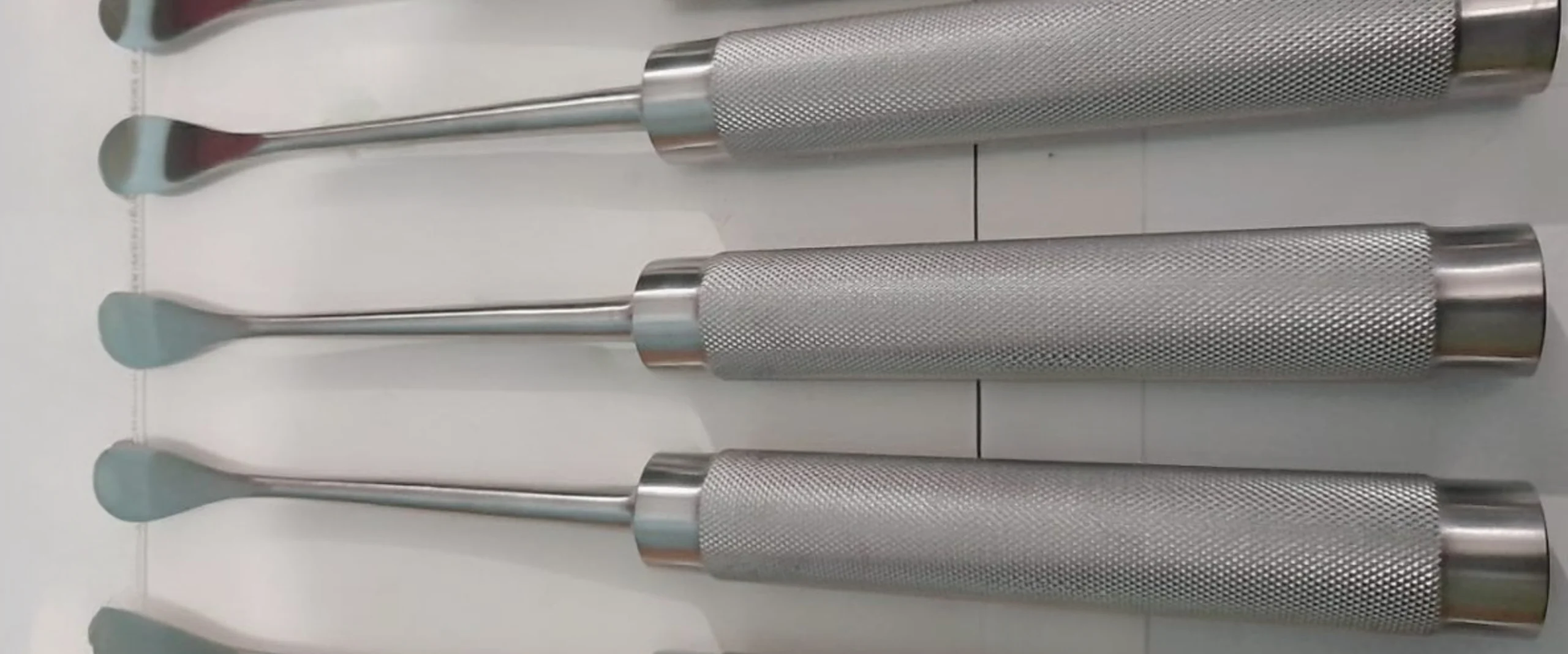

Anterior Cobb Elevators

The Anterior Cobb Elevator is a variation of the classic Cobb elevator specifically designed for anterior surgical approaches to the spine (such as anterior cervical or anterior lumbar procedures). Cobb elevators are long, sturdy instruments with a broad, flat blade used to elevate periosteum and soft tissues off of bone. The anterior version often has slight modifications, like a certain curvature or angle, to facilitate working from an anterior direction (front of the spine) as opposed to the posterior. Surgeons performing anterior cervical discectomy and fusion (ACDF) or anterior lumbar interbody fusion (ALIF) frequently use Anterior Cobb Elevators to separate and mobilize structures like the esophagus, vessels, or organs, as well as to strip the anterior longitudinal ligament and periosteum off the vertebral bodies. These elevators are prized for their combination of strength and finesse, enabling a controlled tissue dissection in sensitive areas.

Key Features and Benefits

• Wide Flat Blade: The elevator’s blade is broad with a slightly curved or beveled tip, perfect for sweeping along bone surfaces. In anterior approaches, this wide blade can quickly elevate the thin layer of tissue (periosteum) from the vertebrae or ribs, and help peel ligaments away from bone with minimal cuts. The broad surface distributes force, reducing the risk of puncture or focal pressure damage to underlying structures.
• Angled for Anterior Use: Many Anterior Cobb Elevators have a gentle curvature or a bend near the blade to match the trajectory of an anterior approach. This angle helps surgeons reach around curves (for example, the lordotic curve of the lumbar spine or the convexity of a vertebra from the front) while keeping their hand positioning comfortable. It ensures optimal leverage and line of sight when working deep in the thoracic or abdominal cavity.
• Rugged Stainless Steel Construction: Cobb elevators are built to withstand significant force as they are often used to pry or lift tissue and bone. The Anterior Cobb Elevator is no exception – made of high-grade stainless steel, it has a stiff shank that won’t bend when retracting muscle or organs, and a handle designed to absorb pressure. This durability gives surgeons confidence when they have to apply sustained or strong force to mobilize structures.
• Textured, Long Handle: The handle is usually long enough to allow two-handed use for added control and is textured for a solid grip. In an anterior approach, especially in the lumbar spine, having a long reach is crucial due to the depth of the surgical field. The ability to hold the elevator securely with both hands (one guiding the tip, one providing leverage) can improve precision and safety during dissection.
• Versatile Tissue Dissection: While primarily used to elevate periosteum and ligamentous tissue off bone, the Anterior Cobb Elevator also doubles as a gentle retractor. Surgeons can use it to hold aside vessels or viscera (with padding if necessary) while accessing the spine from the front. Its smooth, broad blade is atraumatic when used correctly, making it a multipurpose tool in anterior spine exposures.

Surgical Applications

In anterior cervical spine surgery (such as ACDF), after initial exposure of the cervical spine, an Anterior Cobb Elevator can be used to release the anterior longitudinal ligament and remove the disc material. The surgeon slides the elevator along the anterior surface of the vertebral bodies to peel off the ligament and periosteum. This exposes the bony surface for drilling or fusion and can be done quickly with the broad elevator blade. The slight curve of the elevator is particularly useful in this region to accommodate the natural curvature of the neck and to protect nearby structures like the trachea or esophagus by hugging the bone surface.

For anterior lumbar surgeries (like ALIF), the Anterior Cobb Elevator helps in separating the great vessels (aorta and vena cava) and peritoneal contents away from the spine after the surgeon gains access to the front of the vertebral column. By carefully inserting the elevator and sliding it along the psoas muscle or vertebral body, the surgeon can mobilize these tissues. Additionally, the elevator is used to scrape off the anterior longitudinal ligament and annulus fibers from the vertebral bodies to prepare the surface for graft placement. The strength of the elevator is key here because lumbar structures are robust and sometimes calcified; the tool needs to handle tough tissue without flexing.

Surgeons and hospitals choose the Surgivalley Anterior Cobb Elevators for their superior build and tailored design. We ensure that the curvature of our anterior elevators is optimized for access yet does not compromise strength. Each elevator is finished with a non-slip handle and a finely machined blade edge (slightly dull by design to lift tissue without cutting it outright).

Maintenance is simple – they resist corrosion and are easy to identify in a surgical tray due to their distinctive shape. They pair well with other instruments from our [Elevators & Bone Levers] category, such as classic Cobb elevators and Hohmann retractors, to provide a full set of options for tissue management. With Surgivalley’s Anterior Cobb Elevators, spine surgeons are equipped to perform anterior exposures safely and efficiently, ensuring vital structures are protected and the surgical goal is achieved with minimal complications.
